Silicone tape applicator | Mistral

The Mistral silicone tape applicator is a hi-tech product perfect to apply silicone tape on top of pressure sensitive adhesive in the large production of envelopes. We can fit on to a Macari-Fidia DOKKI cross unit, as well as to other manufacturers’ machines, and it requires a hot melt adhesive slot coater. The Macari-Fidia Macchine Grafiche Mistral is extremely easy to fix on a conventional folder gluer. Simply, just place it in the machine shoulders.

To apply silicone tape on top of a surface is an easy operation, if using our silicone tape applicator. However, generally speaking it is more difficult than applying double sided tape. We recommend the application of such silicone tape in presence of big quantities, for two simple reasons. The first one, economic, and second one, longer make ready time for the machine preparation.

Silicone adhesive tape applicator Mistral will be shown at Drupa 2024

Fidiagraf, every year, participates in fairs in the world of print finishing. On those occasions, we show customers the operation of our automatic machines. We will participate in Drupa 2024, in Düsseldorf, Germany. On that occasion, we will exhibit our Speedy, as a double-sided adhesive tape applicator and tear tape applicator. But we will also show our Mistral, the silicone tape applicator. We will show all its technical details, as well as how it works. The Mistral, like the Speedy, is an automatic tape applicator designed to meet the needs of our customers. It is adaptable, efficient, fast and precise.

Mistral needs a hot melt gluing system to work.

Definitely, for all information, do not hesitate to contact us or visit our YouTube channel.

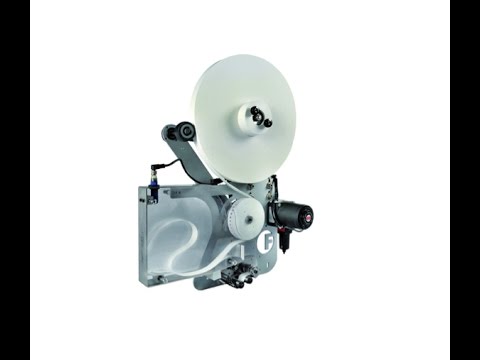

Mistral silicone tape applicator

Possible Jobs

Courier envelopes and special envelopes

Specifications

  • Maximum tape width: 40 mm
  • Minimum tape width: 12 mm
  • Maximum working output: 200 pieces/min

Videos

Automatic Silicone tape applicator | Mistral

Silicone Tape Applicator Mistral A/12

Frequently Asked Questions

Who makes the Mistral silicone tape applicator?

Mistral is made by Macari-Fidia (Macari S.r.l.), based in Ciriè near Turin, Italy. The company was founded in 1990 and supplies customers in over 30 countries.

What does Mistral apply, and is silicone tape the adhesive?

Mistral applies silicone tape on top of pressure-sensitive adhesive in the large production of envelopes, cardboard mailers and boxes. Silicone tape is not the adhesive: it is the removable release liner that protects the hot melt until the user peels it off to close the pack.

What tape widths can Mistral apply?

Mistral applies silicone tape from 12 to 40 mm wide. Send the tape you plan to use and Macari-Fidia will check it against these limits.

How fast is Mistral?

Mistral is rated at up to 200 pieces per minute. The real figure depends on the blank format and on the machine it is mounted on.

Does Mistral need a hot melt system?

Yes. Mistral needs a hot melt gluing system with a slot coater, which Macari-Fidia does not make. The system puts down the pressure-sensitive hot melt that Mistral then covers with the silicone tape.

Can Mistral be fitted to an existing folder gluer?

Often yes. Mistral is placed in the machine shoulders of a conventional folder gluer, and it can also be fitted to a Macari-Fidia Dokki cross unit or to other manufacturers’ machines. The line must also have room for the hot melt system.

When should I choose silicone tape instead of double-sided tape?

Choose silicone tape for regular high-volume production, where it can cost less per piece in consumables and the hot melt anchors well on porous cardboard. For short and medium runs, double-sided tape is usually the better choice: it needs simpler equipment and quicker format changes. The double-sided tape for envelopes page compares the two.

Which jobs does Mistral run on?

Mistral closes cardboard mailers on Macari-Fidia’s Manon and Ortigia machines and on compatible mailer machines, and applies the two liners of resealable e-commerce boxes. It is also an option for expandable cardboard mailers.

How much does a Mistral applicator cost?

The cost of a Mistral depends on how it is configured, and Macari-Fidia quotes per project rather than publishing a price. To get a quotation, send your mailer or box sample, the silicone tape width and position, the material, your production volume and details of the machine and hot melt system you plan to use to [email protected] or use the contact form.

What installation and service does Macari-Fidia offer for Mistral?

On request, Macari-Fidia’s technicians and fitters provide consulting, installation, start-up and staff training on site. Maintenance and servicing agreements can also be arranged; see Aftersales & Spare Parts.
