Shopping bag square bottom forming unit | Navona Base

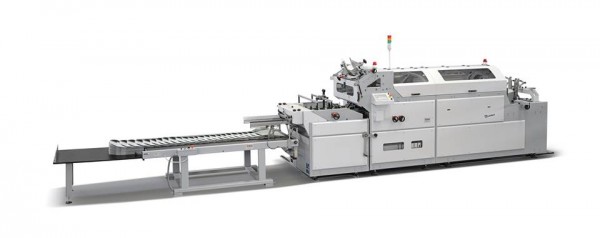

This machine is a special machine to open and form the shopping bag square bottom (patented system®), insert the reinforcing carton, than close the square bottom.
With the Navona Base we can make:
- the opening and forming of the shopping bag square bottom
- the inserting of reinforcing carton and closing of the side flaps
Working process
- Shopping bag tube feeding
- Breaking of first front tube flap grain
- Breaking of second front tube flap grain
- Opening and forming of the shopping bag square bottom (patented system®)
- Insertion of the reinforcing carton into the shopping bag tube opened bottom
- Plough folding of side flaps
Machine composed of
- Tube feeder with directional and launching system of the tube bag
- Square bottom opening and forming station (patented system) with inserter to position the reinforcing carton
- Plough folding unit to close the square bottom side flaps
- Delivery table
For further inquires or questions you may use the Contact Us or visit our YouTube channel. We look forward to hear from you.
How it works
Specifications
- Maximum tube format: 500 x 540 mm (with maximum gussets 7+7 cm)
- Minimum tube format: 170 x 225 mm (with minimum gussets 3+3 cm)
- Feeder loading capacity: 200 mm
- Reinforcing cardboard grammage: from 200 to 500 gr
Videos

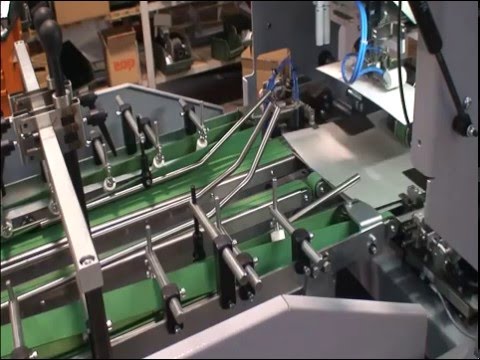

Large shopping bag square bottom closing | Navona Base
Shopping bag square bottom closing | Navona Base
Open and Form the Shopping Bag Square Bottom Navona Basic B/06
Frequently Asked Questions
Who makes the Navona Base square bottom forming unit?
The Navona Base is made by Macari-Fidia (Macari S.r.l.), based in Ciriè near Turin, Italy. The company was founded in 1990 and supplies customers in over 30 countries.
What does the Navona Base do?
The Navona Base opens and forms the square bottom of a shopping bag with a patented system, inserts the reinforcing carton, and closes the bottom by folding the side flaps. It starts from the shopping bag tube.
What are the working steps of the Navona Base?
The tube is fed, and the first and then the second front tube flap grain are broken. The square bottom is opened and formed, the reinforcing carton is inserted into the opened bottom, and a plough folds the side flaps.
What tube sizes and carton weights does it take?
The Navona Base processes tube formats from 170 × 225 mm, with gussets of 3+3 cm, up to 500 × 540 mm, with gussets of 7+7 cm. The reinforcing cardboard weighs 200 to 500 g, and the feeder loading capacity is 200 mm.
What is the Navona Base made of?
It has a tube feeder with a directional and launching system, a square bottom opening and forming station with an inserter that positions the reinforcing carton, a plough folding unit for the side flaps and a delivery table.
When should I choose the Navona Base instead of the Navona?
Choose the Navona Base when you need the forming, reinforcing and closing steps of the square bottom. The Navona goes further: it adds a 90° cross unit, a gluing system with two applicators and a punch unit for the handle holes.
How much does a Navona Base cost?
The Navona Base is quoted per project, because Macari-Fidia configures it to the customer’s requirements and publishes no price. For a quotation, send a sample of your shopping bag, the tube format and gussets, the carton weight and your volume to [email protected] or use the contact form.
What installation and service does Macari-Fidia offer for the Navona Base?
On request, Macari-Fidia provides consulting, installation, start-up and staff training on site through its own technicians and fitters. Agreements for maintenance and servicing can be added; they are listed on the Aftersales & Spare Parts page.
