Envelope maker machine

Envelope Maker Machine | Tosca

The production of an envelope maker machine represented a fundamental aspect in the world of modern commerce. In fact, more and more companies need quality, resistant packaging and customized products. Therefore, we at Fidia Macchine Grafiche have intercepted this need many years ago.

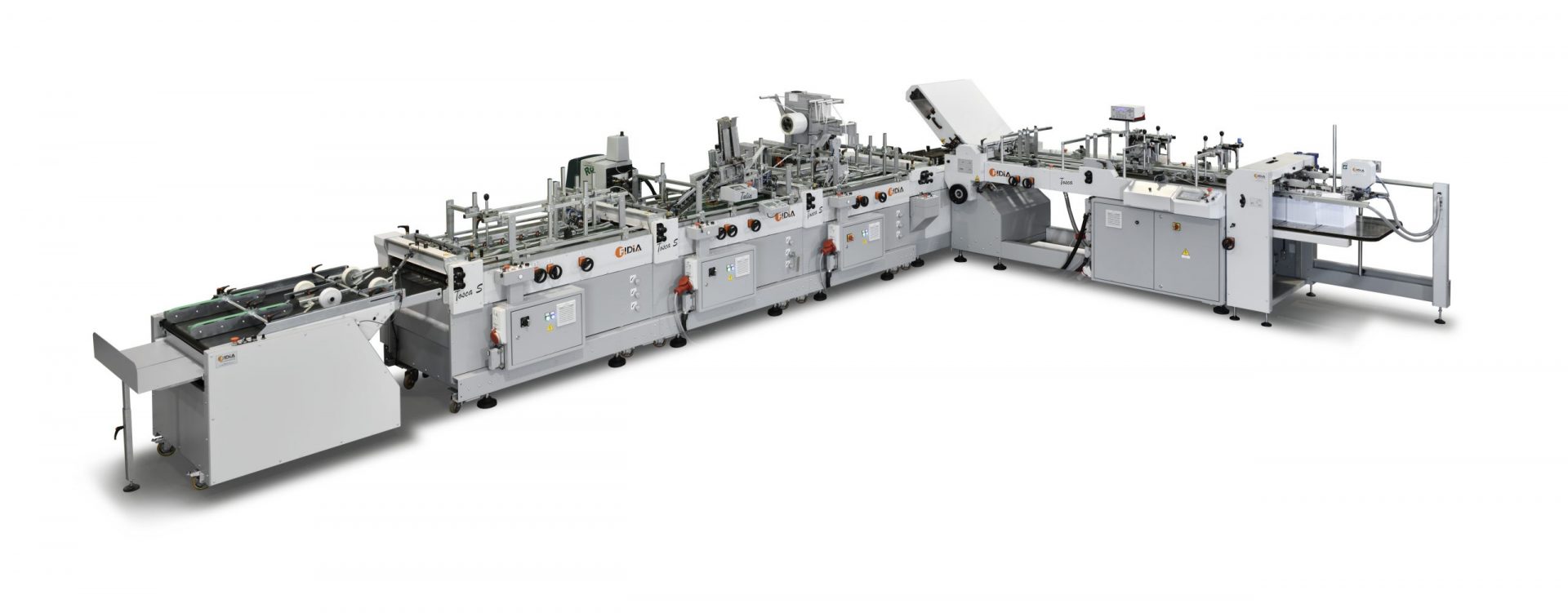

We have built a perfect automatic machine for the production of envelope style bags. The Tosca envelope maker machine is the latest solution to join Fidia’s envelope machines line. The Tosca is the ideal solution for making special envelopes, e-commerce envelopes, big format envelopes, as well as:


  • Shopping envelopes
  • Packaging envelopes
  • Any folded and glued items
  • Insertion of cards
  • Brochures
  • Sample bags

Office envelope
Application of double sided tape on envelopes through our Speedy double sided tape applicator

The Tosca is a machine able of producing quality envelopes at high work rates, starting from a blank sheet already cut and creased. Tosca’s working process it’s simple once you have the right configuration. In fact, to build a machine able of carrying out all the necessary steps to produce resistant and quality envelopes, is the Fidia goal.

We can divide the Tosca envelope making machine’s work process into 9 basic steps:

  1. The machine is fed with blank sheets already cut and creased. In a word, the Tosca has been designed to work on sheets ready to be modeled, step by step.
  2. The next step, is the formation of the gussets (if required) through the metal folding ploughs.

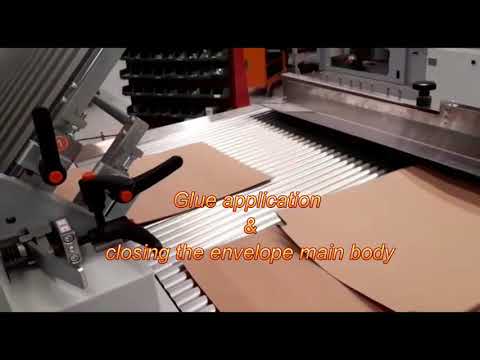

  3. At this point, the machine applies one line of glue on top of each gussets, preparing them for the closure.

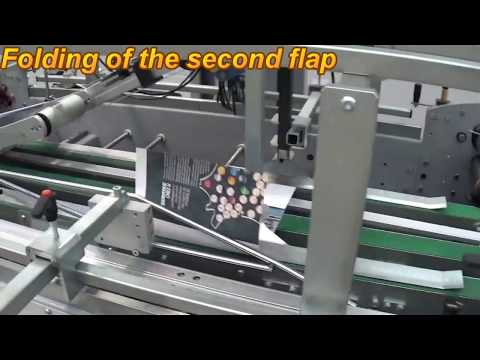

  4. Folding of the sheet takes place to form the main body of the envelope.

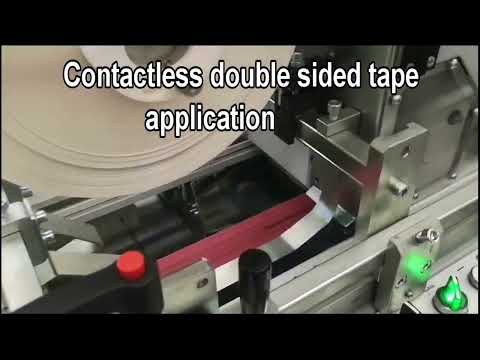

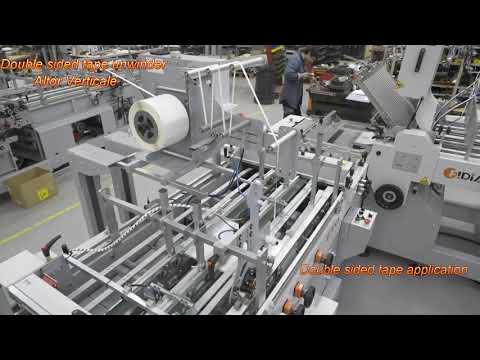

  5. At this point of the work process, our double sided tape applicator Speedy, one of our automatic tape applicators, mounted on the Tosca, starts operating. In detail, the Speedy applies a strip of double-sided tape on one side of the sheet.
  6. At this point, through our inserter pick & place Talia, a cardboard reinforcement in the area of ​​the handle will be applied.
  7. To ensure perfect resistance of the handle, the Tosca applies a line of hot glue in correspondence with the cardboard reinforcement.
  8. By folding the sheet, we will have the handles.
  9. After all, at the end of the work process, we will have the finished product.

In conclusion, for more detailed information on the Tosca envelope maker machine please contact us using the Contact Us page or visit our YouTube channel.

Possible Jobs

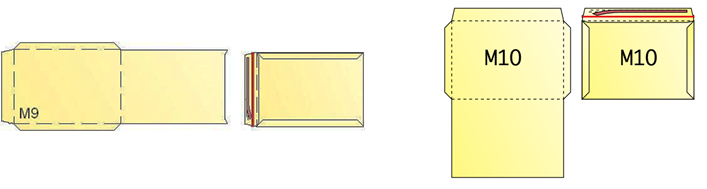

Envelopes:

Open End Envelope With Central Seam
Open End Envelope With Central Seam
Booklet Envelope
Booklet Envelope
Square Envelope
Square Envelope
square flap envelope
Square Flap Envelope
Remittance Envelope
Remittance Envelope
Document Envelope
Document Envelope

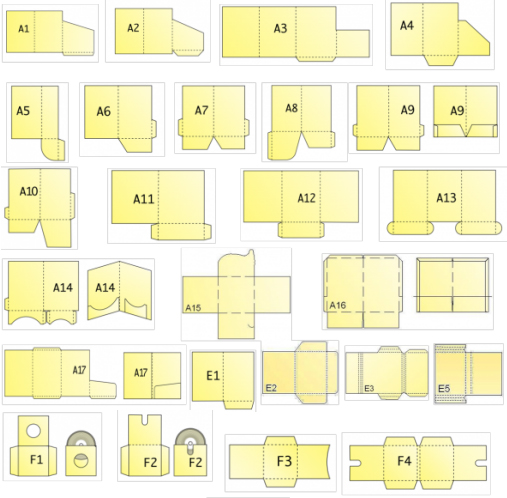

Folders

presentation folder

CD/DVD Holders

cd case
dvd case

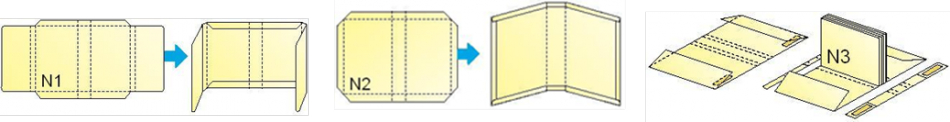

Flexible book covers

flexible book cover

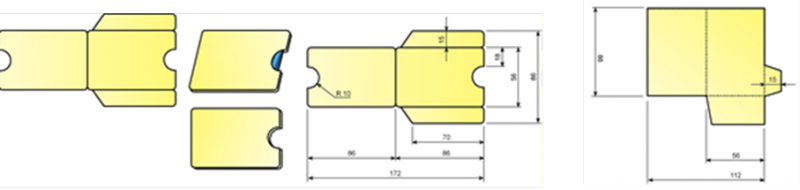

Special/Custom jobs: credit card holders, hotel keys, etc.

special envelope

Specifications

Technical Specifications

  • Maximum Open Format: 700 x 1000 mm
  • Maximum Closed Format: 150 x 200 mm
  • Speed Max: Up to 10.000 pieces per hour depending on the format

The Tosca machine has also 2 different feeders for working with light paper and heavy paper.

  • Tosca Feeder: Working with paper from 120g up to 450
  • Rialto Feeder: Working with paper from 70g up to 120g

Videos
