Double sided tape applicator | Speedy

Speedy the double sided tape applicator, designed for automatic application of double sided tape with any compatible machines. Our double sided tape applicator has been developed for full automation in any scenario that requires tape application. The Speedy can be placed in a number of different positions on several Macari-Fidia machines, as well as other manufacturers’ machines.

The Speedy is very useful for the production of envelopes with strips, applying the double sided tape on the back of shop window posters P.O.S. (Point Of Sale) and to assist hand make-up of capacity pocket wallets.

Why the Speedy applicator shouldn’t be missing in your company?

Undoubtedly, more and more customers in the world of print finishing need machines that apply double sided tape to their packaging.

Today it is essential to be able to do this work, to make the finished product rich and attractive to customers. Some possible tape applications scenarios on:

  • Top flap closure of envelopes
  • Posters
  • Shopping bags
  • Envelopes
  • E-commerce boxes
  • Cardboard Material
  • Wooden surfaces
  • other strong flat surfaces…

For all information, do not hesitate to contact us or visit our YouTube channel.

Speedy double sided tape applicator

Possible Jobs

Posters of different kind
Courier envelopes and special envelopes
Stripes, promotional items, and so on

Specifications

  • Maximum tape width: 25 mm
  • Minimum tape width: 6 mm
  • Min. application length: 30 mm
  • Minimum distance of the tape application from the sheet edge: 5 mm
  • Working output: 200 pieces/min, depending on format, kind of paper and length of tape applications
  • Minimum distance between in line tape applications: 30 mm
  • Minimum distance between parallel tape applications in case of 2 or more applicators: 120 mm

Videos

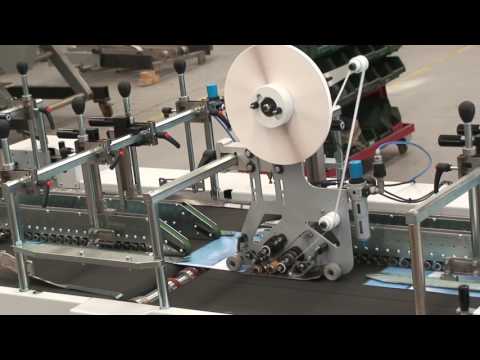

High Speed Double sided tape application | Speedy

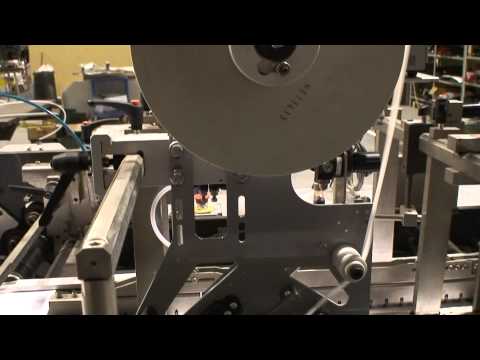

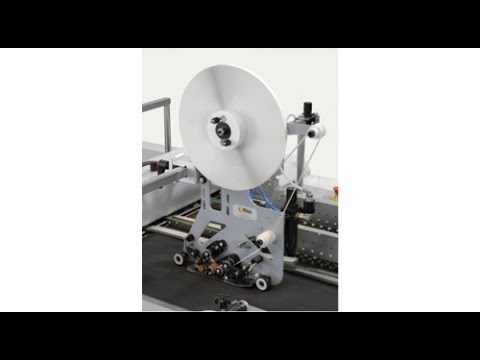

Double Sided Tape Applicator A/07 | Speedy (Made in Italy)

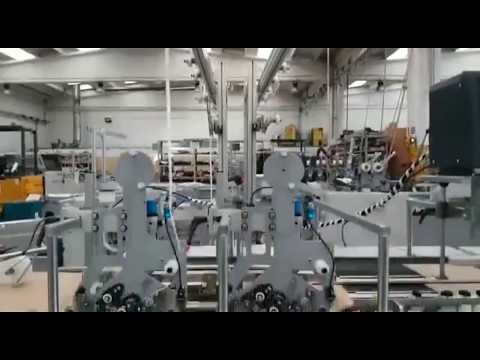

Double Sided Tape Applicator with 2 Applicators (Made in Italy) A/05

Application of double sided tape on Victoriam A/14

Double sided tape application and plough folding with Borea SPE friction fed machine A/01

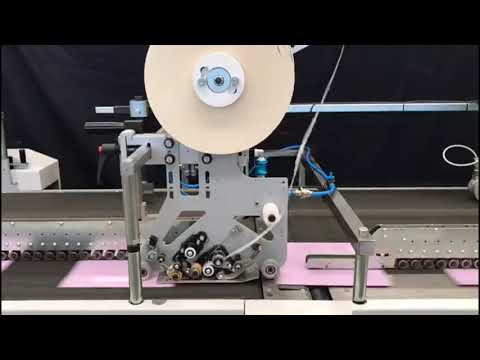

Speedy - Fast application of double sided tape and tear tape A/21

Frequently Asked Questions

Who makes the Speedy double-sided tape applicator?

Speedy is made by Macari-Fidia (Macari S.r.l.), based in Ciriè near Turin, Italy. The company was founded in 1990 and supplies customers in over 30 countries.

Which jobs is the Speedy tape applicator used for?

Speedy applies double-sided tape automatically to envelopes with adhesive strips, to the back of shop-window and point-of-sale posters, and to assist the hand assembly of capacity pocket wallets. The application pages show it in use on envelopes, posters, returnable e-commerce envelopes and expandable cardboard mailers.

What tape widths and lengths can Speedy apply?

Speedy applies double-sided tape from 6 to 25 mm wide, in strips at least 30 mm long. Each strip must start at least 5 mm from the sheet edge. For tape up to 50 mm wide, Macari-Fidia makes the Speedy Plus.

How fast is Speedy?

Speedy is rated at up to 200 pieces per minute. The real figure depends on the format, the kind of paper and the length of the tape applications.

How close together can Speedy’s tape strips be?

Two strips applied one after the other in line need at least 30 mm between them. When two or more applicators place parallel strips, those strips need at least 120 mm between them.

Can Speedy be fitted to my existing machine?

Often yes. Speedy is designed to be placed in several positions on Macari-Fidia machines and on other manufacturers’ machines. Macari-Fidia first checks the space, the sheet transport, the controls and the tape position.

What else do I need besides the Speedy applicator?

You need a machine that feeds and transports the sheets, such as a Macari-Fidia Borea feeder or Tosca envelope machine, or your own line. Double-sided tape carries its own adhesive, so no hot melt or liquid glue unit is needed. For long runs, the Altor Verticale unwinder raises the tape capacity from the 500 m held by Speedy’s own reel to up to 20,000 m.

What is the difference between Speedy, Speedy Plus and Speedy TT?

Speedy applies double-sided tape 6–25 mm wide, Speedy Plus applies double-sided tape up to 50 mm wide, and Speedy TT applies tear tape from 4 mm wide. Speedy and Speedy Plus are each rated at up to 200 pieces per minute, Speedy TT at up to 100.

How much does a Speedy applicator cost?

A Speedy applicator is quoted per project: Macari-Fidia builds each machine to the customer’s requirements, so no price is published. To get a quotation, send your sample or drawing, the tape width and position, the sheet or envelope size and material, your production volume and details of any existing machine to [email protected] or use the contact form.

What installation and service does Macari-Fidia offer for Speedy?

On request, Macari-Fidia offers consulting, installation, start-up and staff training carried out on site by its own technicians and fitters, and can agree maintenance and servicing agreements. Details are on the Aftersales & Spare Parts page.
