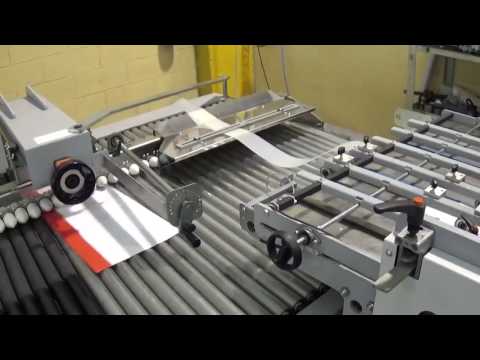

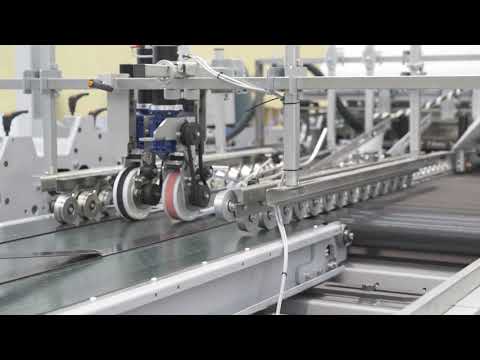

The Vampa-Trevi shopping bag tube making machine starts from a blank sheet. Than, it can crease, insert the reinforcing cartons on the handles, fold the handles, make the gussets of the shopping bag body, glue and close the tube. Here, a demonstration video.

For further inquires or questions you may use the Contact Us or visit our YouTube channel. We look forward to hear from you.

Scheme of the working process of the Vampa – Trevi

Shopping bag tube making machine-process

Possible jobs

From a blank sheet to the shopping bag tube:

posible-job-1

 Technical details for Shopper’s formats:

  • Paper weight from 150 ÷ 250 gr/m²

shopper format

shopper bags

Specifications

Main technical data

  • Maximum open format: 115,0 x 62,5 cm
  • Minimum open format: 48 x 35 cm
  • Paper weight: from 150 to 250 gr

Reinforcing cartons:

  • Width: from 35 to 120 mm
  • Length: from 80 to 350 mm
  • Thickness: maximum 4 mm, minimum 0.3 mm
  • Grammage: from 200 to 500 gr

Machine composed of:

  • Flat pile feeder
  • TALIA Inserter to position the two reinforcing cartons on the shopping bag handles
  • Cross unit to close the tube and make the gussets
  • Two gluing systems with independent applicators
  • Creasing system with three large diameter couples of rollers
  • Delivery table
