Folding and Gluing of Boxes | Babila

The Babila is a brand new machine from Macari-Fidia which is aimed at the packaging industry for the folding and gluing of boxes. The machine consists of a friction feeder, two working tables and a delivery table. And it is ready for mounting of a wide range of tape applicators, label applicators and inserter machines like the Talia.

Our machines are suitable for short, medium and long run works. We can make office envelopes, courier envelopes, as well as central seam envelopes and envelopes with capacity.

Possible Jobs
  • In-line gluing of boxes
  • Folding & gluing of with crash lock bottom
  • Application of adhesive tapes (optional)
  • Closing and gluing of shopping bag bottoms (optional)
  • Pick & place and insertion of: card, samples, etc. (optional)
  • Folding and gluing of works which can be carried out with the tipper plate (optional)
  • On request such as: cold gluing, Inkjet, barcode reader, etc

For any further information or inquiries please contact us or visit our YouTube channel.

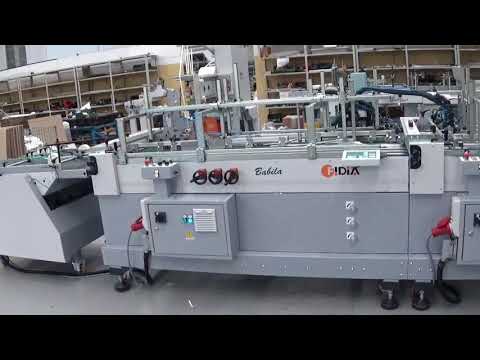

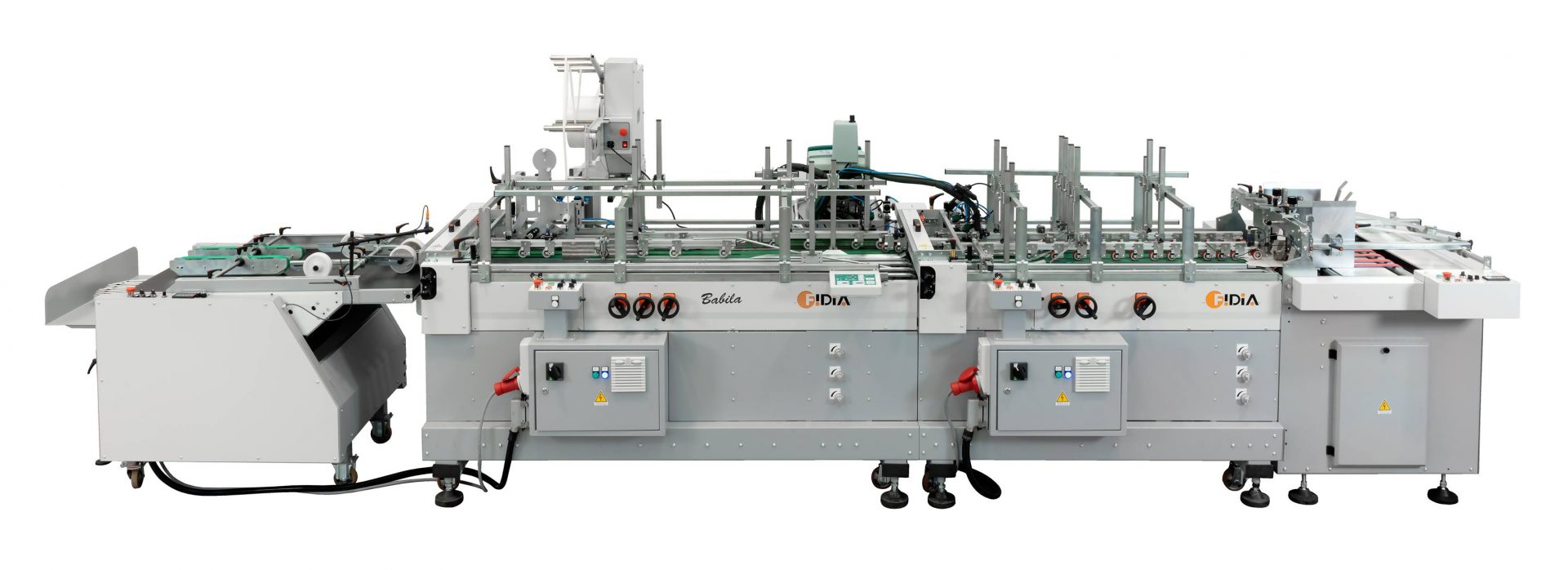

Babila folding and gluing machine

Possible Jobs

Babila folding and gluing detail 1
Babila folding and gluing detail 2
Babila folding and gluing detail 3
Babila folding and gluing detail 4

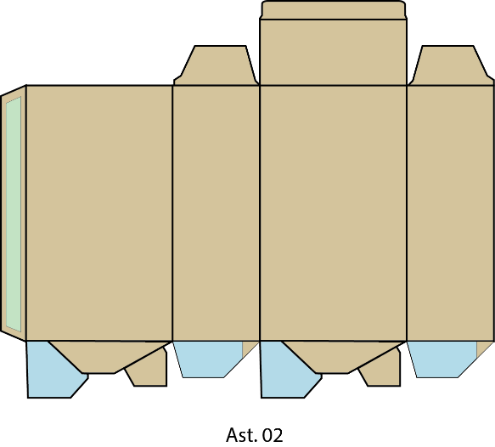

Babila folding and gluing detail 5

Specifications

  • Feeder loading capacity: 200 mm
  • Maximum size: 720 x 700 mm (open format)
  • Minimum format: 150 x 100 mm (open format)
  • Paper weight: 180 to 450 gr
  • Mechanical speed: 120 mt/min
  • Electrical connection: 380/415 V Trif. + Neutral + T 50 Hz
  • Connection power: 8.0 Kw
  • Compressed air: 6 BAR with ½ inch connection

Videos

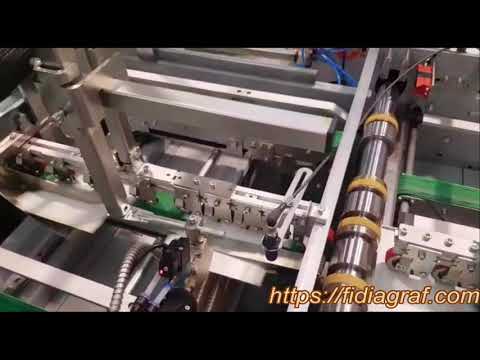

Folding and gluing of boxes D/52 | Babila CL

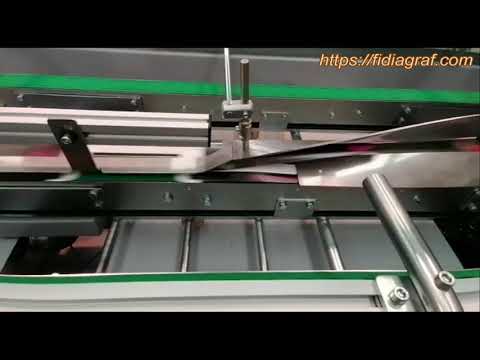

Babila CL | Folding and gluing of Pizza holders

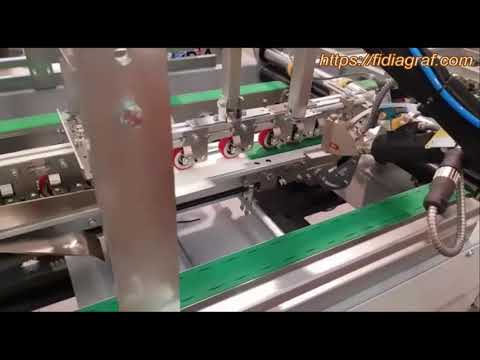

Box in-line gluing #1 - Babila CL D/67

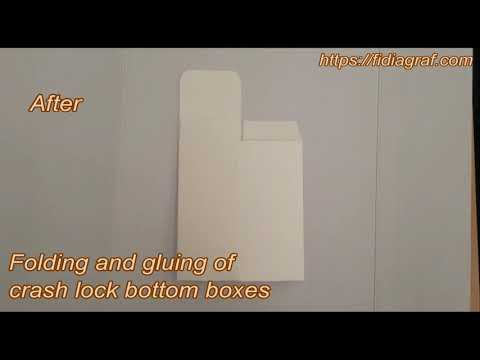

Folding and gluing of crash lock bottom boxes | Babila CL D/62

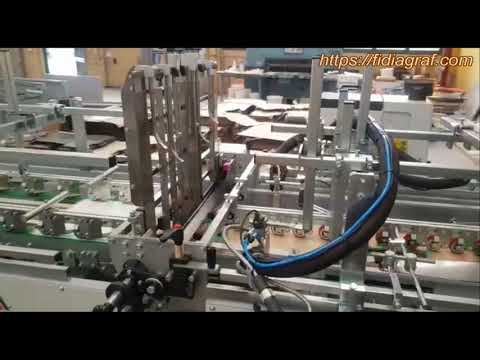

Folding and gluing of Crash lock bottom boxes #1 | Babila CL D/63

Folding and Gluing of Soap Boxes | Babila CL D/64

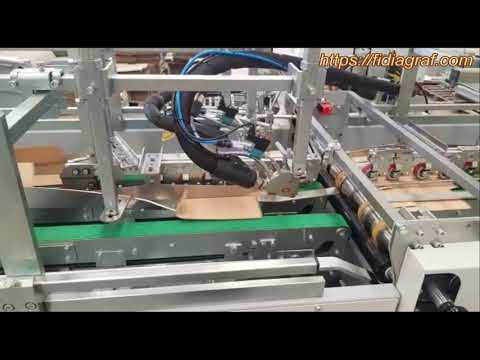

Box inline gluing #3 - Babila CL D/65

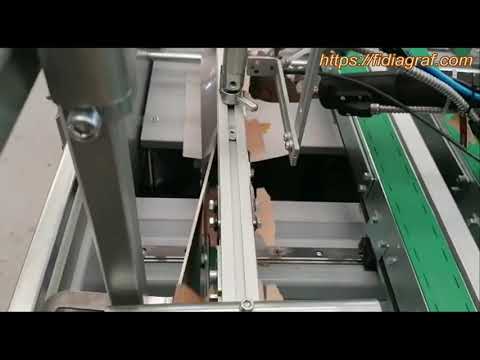

Box in-line gluing #2 - Babila CL D/66

Frequently Asked Questions

Who makes the Babila CL folding and gluing machine for boxes?

The Babila CL is made by Macari-Fidia (Macari S.r.l.), based in Ciriè near Turin, Italy. The company was founded in 1990 and supplies customers in over 30 countries.

What does the Babila CL do?

The Babila CL folds and glues boxes for the packaging industry. It consists of a friction feeder, two working tables and a delivery table, and it is ready for mounting a wide range of tape applicators, label applicators and inserter machines such as the Talia.

Which boxes and jobs can the Babila CL run?

Standard jobs are in-line gluing of boxes and folding and gluing of boxes with a crash lock bottom. Its videos also show pizza holders and soap boxes. Optional jobs include applying adhesive tapes, closing and gluing shopping bag bottoms, and folding and gluing with the tipper plate.

What sizes and board weights does the Babila CL process?

The Babila CL processes open formats from 150 × 100 mm up to 720 × 700 mm, in paper and board of 180 to 450 g. The feeder loading capacity is 200 mm.

How fast is the Babila CL?

The Babila CL has a mechanical speed of 120 m/min.

Can the Babila CL apply tape or insert cards and samples?

Yes, as options. The machine accepts Macari-Fidia’s tape applicators and the Talia pick-and-place unit, which inserts cards and samples. On request it can also be equipped for cold gluing, inkjet printing or a barcode reader.

How does the Babila CL differ from the Babila FF and Ortigia?

The Babila CL folds and glues boxes in line. The Babila FF is a friction-fed taping machine, and Ortigia applies tape to large corrugated blanks. For mailers and boxes with silicone tape, the application page shows where the Babila CL fits.

What electrical and air supply does the Babila CL need?

It needs a 380/415 V three-phase supply with neutral and earth at 50 Hz, with a connection power of 8.0 kW. It also needs compressed air at 6 bar with a ½ inch connection.

How much does a Babila CL cost?

The price of a Babila CL depends on the options you choose, so Macari-Fidia quotes per project and does not publish a price. For a quotation, send your box drawing or sample, the open format, the board weight, the options you need, such as tape or inserting, and your volume to [email protected] or use the contact form.

What installation and service does Macari-Fidia offer for the Babila CL?

Macari-Fidia’s technicians and fitters provide consulting, installation, start-up and staff training on site when requested. It also offers agreements for maintenance and servicing, which the Aftersales & Spare Parts page lists.
