Inserting Machines
Inserter Machine | Talia
The Talia is an innovative inserter unit for application of many kind of items on upper surface of the end product (shopping bags, envelopes, presentation folders, etc.). The Talia can be placed on our special machines, as well as assembled on other in-line systems. By adding the Talia to a machine it automatically becomes an inserting machine for a number of different things.
Possible Jobs
With the TALIA we can apply many items on the upper surface of the end product (shopping bags, envelopes, presentation folders, etc.):
- reinforced cartons
- sample packets (either already glued or still “open”)
- telephone and credit cards
- membership cards
- envelopes (perfumes, cosmetics, etc.)
- hang tags for clothing
- and many others
System composed of
- Dialog through a 4.3“ independent colour touch screen
- Emergency button
- Manual slow start button
- “Nearly empty” control with acoustic warning
- Independent copy counter display
- Inserting card board governed by a PLC
For more information, visit the Contact Us page or visit our YouTube channel.
Specifications
- Reinforcing carton width: from 35 to 120 mm
- Reinforcing carton length: from 80 to 350 mm
- Reinforcing carton thickness: maximum 4 mm, minimum 0.3 mm
- Reinforcing carton grammage: from 200 to 500 gr
Videos

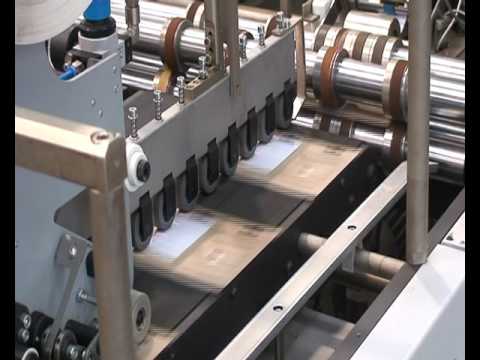

Inserting Machine Talia (Made in Italy) I/2

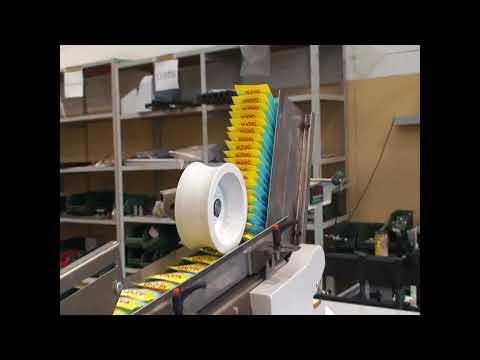

Inserting machine | Talia

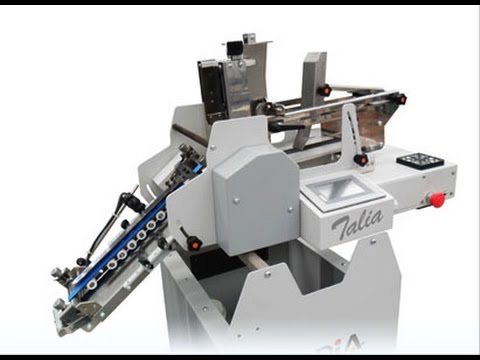

Inserting and Pick & place, sample bags and labels on a brochure D/44 | Tosca

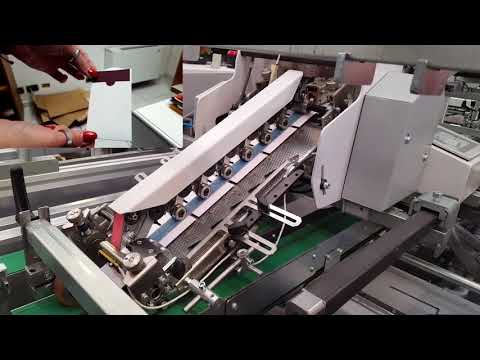

Card pick & place on mini envelopes | Tosca D/49
Reversing leaflets recto verso Machine | Tosca D/45
Cards and samples pick & place "TALIA" I/3
Frequently Asked Questions
Who makes the Talia inserter machine?
Talia is made by Macari-Fidia (Macari S.r.l.), based in Ciriè near Turin, Italy. The company was founded in 1990 and supplies customers in over 30 countries.
What does the Talia do?
Talia is an inserter unit that applies items on the upper surface of the end product, such as shopping bags, envelopes and presentation folders. Added to a machine, it turns that machine into an inserting machine.
Which items can the Talia insert?
Talia inserts reinforcing cartons, sample packets (glued or still open), telephone and credit cards, membership cards, envelopes for perfumes and cosmetics, and hang tags for clothing. It can place many other items too.
What reinforcing carton sizes can the Talia handle?
The reinforcing carton is 35 to 120 mm wide, 80 to 350 mm long and 0.3 to 4 mm thick, with a weight of 200 to 500 g.
Can the Talia be added to my existing line?
Often yes. Talia can be placed on Macari-Fidia’s special machines and also assembled on other in-line systems. Macari-Fidia first looks at the space, the transport of the product and the controls.
Which Macari-Fidia machines use the Talia?
It positions the handle reinforcements on the Vampa-Trevi and the Vampa Base shopping bag machines. It also appears in the videos of the Tosca envelope machine, and the Babila CL is ready for inserters like it.
How is the Talia controlled?
The Talia has an independent 4.3-inch colour touch screen, an emergency button, a manual slow start button and an independent copy counter display. A “nearly empty” control gives an acoustic warning, and a PLC governs the inserting of the cardboard.
How much does a Talia cost?
The price of a Talia depends on the items it inserts and the line it joins, so Macari-Fidia quotes per project and publishes none. To get a quotation, send a sample of the item to insert and the product that receives it, the volume you need and details of your line to [email protected] or use the contact form.
What installation and service does Macari-Fidia offer for the Talia?
On request, Macari-Fidia’s own technicians and fitters provide consulting, installation, start-up and staff training on site. The company also arranges maintenance and servicing agreements; the Aftersales & Spare Parts page describes them.
