Manual taping machine | Ortigia Manuale

Ortigia Manuale is a manual taping machine which can apply double sided tape, tear tape, or silicone tape on large corrugated cardboard. This machine is a perfect solution for all companies that make smaller quantities. For bigger quantities you may check our automatic taping machine.

With its large feeding table and ability to load sheets up to 120×200 cm it is the perfect machine for all kinds of jobs. The Ortigia Manuale taping machine is ideal for applying tape to cardboard with irregular shapes and sizes, e-commerce envelopes, corrugated mailers and much more.

Finally, for any further inquiries for this applicator you may contact us using the Contact Us page or visiting our YouTube channel.

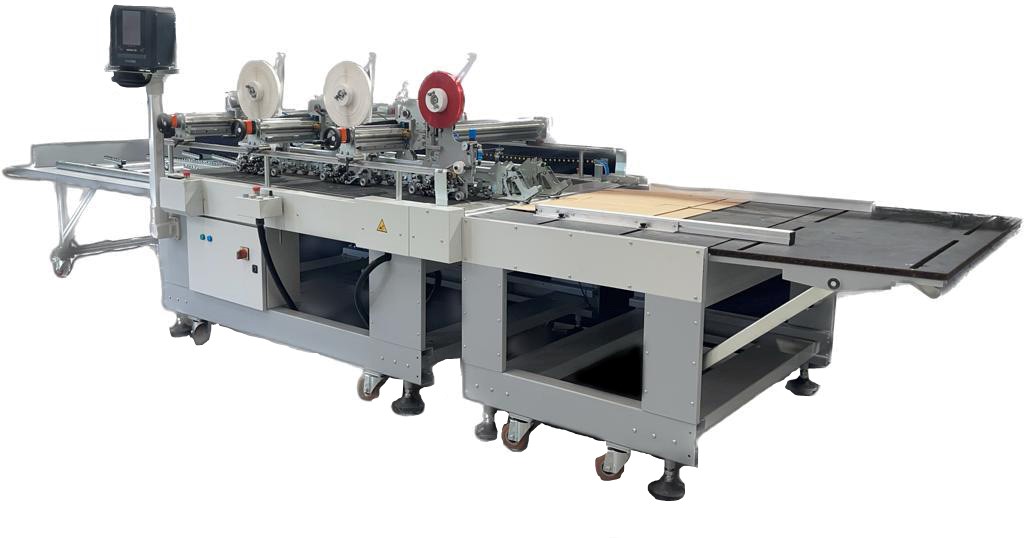

Ortigia Manuale manual taping machine

Possible Jobs on this taping machine

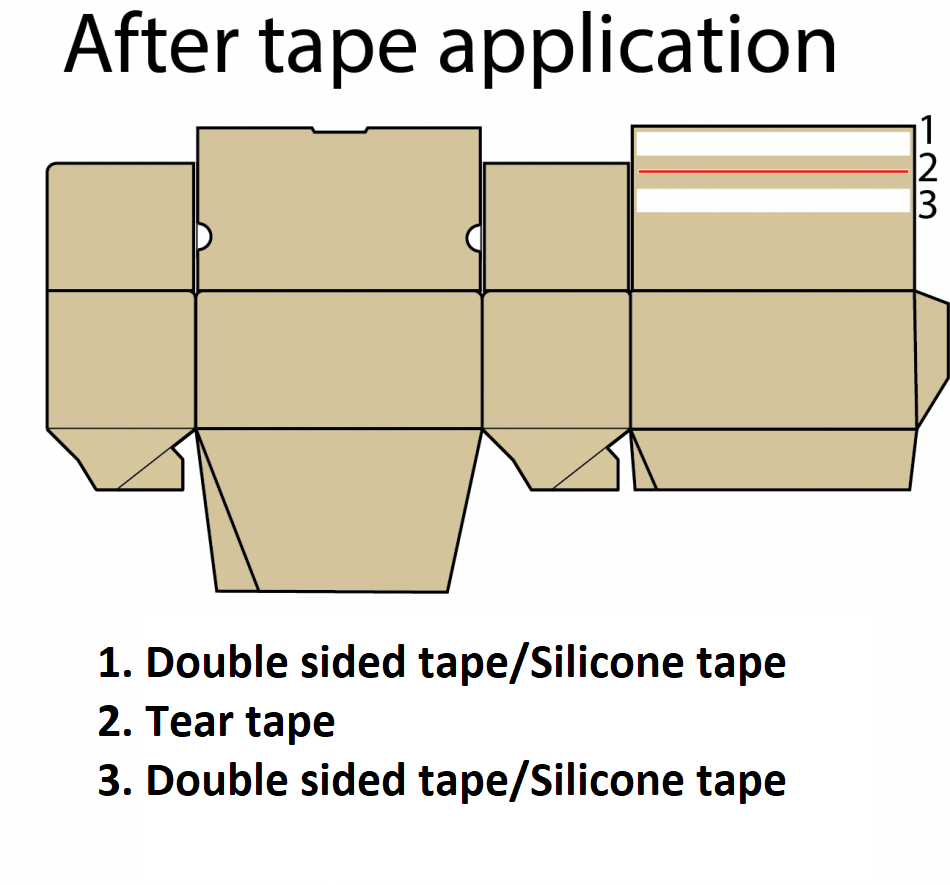

Cardboard tape application on manual taping machine
Box tape application on manual taping machine

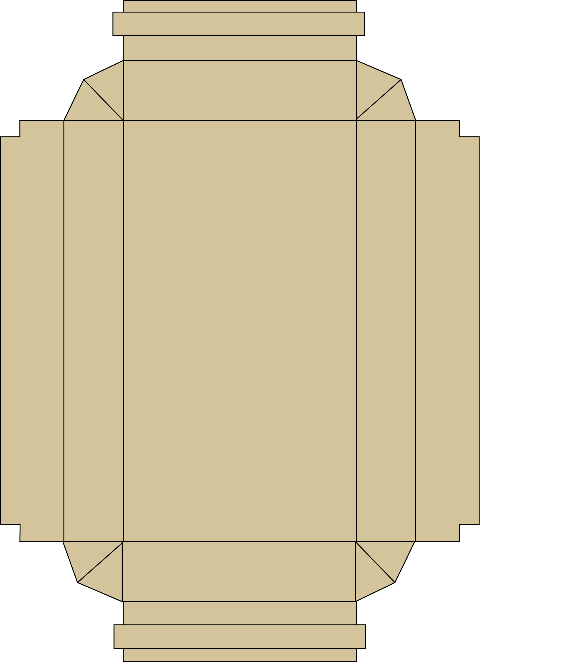

Irregular shaped cardboard on manual taping machine
Irregular shaped box format

Specifications

  • Maximum open format: 120 x 200 cm
  • Minimum open format: 40 x 50 cm
  • Carton thickness E flute: 1.6 mm
  • Carton thickness B flute: 3.2 mm
  • Carton thickness C flute: 4.3 mm
  • Carton thickness BC flute: 7.2 mm

Videos

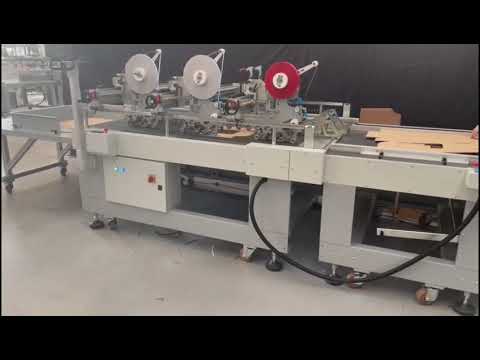

Ortigia MF | Manual taping machine

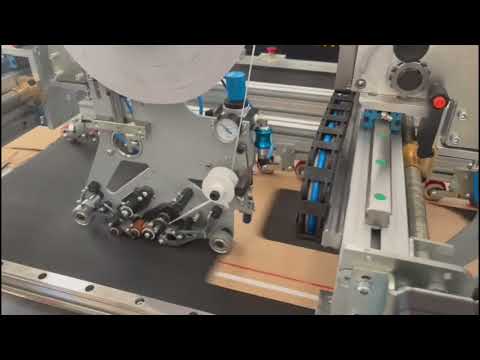

Ortigia MF | Manual tape application machine

Frequently Asked Questions

Who makes the Ortigia Manuale manual taping machine?

The Ortigia Manuale is made by Macari-Fidia (Macari S.r.l.), based in Ciriè near Turin, Italy. The company was founded in 1990 and supplies customers in over 30 countries.

What does the Ortigia Manuale do?

The Ortigia Manuale is a manual taping machine that applies double-sided tape, tear tape or silicone tape to large corrugated cardboard. It is made for companies that produce smaller quantities, and it is also suited to cardboard with irregular shapes and sizes, e-commerce envelopes and corrugated mailers.

Is the Ortigia Manuale the same as the Ortigia MF?

Yes. The machine page is named Ortigia Manuale, while its videos and the application pages call it Ortigia MF. Both names mean this manual taping machine.

What sizes and board thicknesses can it process?

The Ortigia Manuale takes open formats from 40 × 50 cm up to 120 × 200 cm. It processes corrugated board of up to 1.6 mm in E flute, 3.2 mm in B flute, 4.3 mm in C flute and 7.2 mm in BC flute.

When should I choose the Ortigia Manuale instead of the Ortigia?

Choose the Ortigia Manuale for small quantities, irregular formats and thick board. The automatic Ortigia is the machine for bigger quantities: it is rated at 1,500 to 4,000 copies per hour, according to the format, on board up to 3.7 mm thick.

Which tape jobs is the Ortigia Manuale used for?

It is the small-quantity option on the application pages for silicone tape on resealable e-commerce boxes and silicone tape on cardboard mailers. For resealable boxes, that page pairs it with two Mistral applicators, a Speedy TT and a hot melt system.

How much does an Ortigia Manuale cost?

Macari-Fidia does not publish a price for the Ortigia Manuale: each machine is configured to the customer’s requirements and quoted per project. To get a quotation, send a sample of your box or mailer, its open size and board type, the tapes you need and the quantities you make to [email protected] or use the contact form.

What installation and service does Macari-Fidia offer for the Ortigia Manuale?

On request, Macari-Fidia’s own technicians and fitters carry out consulting, installation, start-up and staff training on site. Maintenance and servicing agreements are available too, as the Aftersales & Spare Parts page explains.
